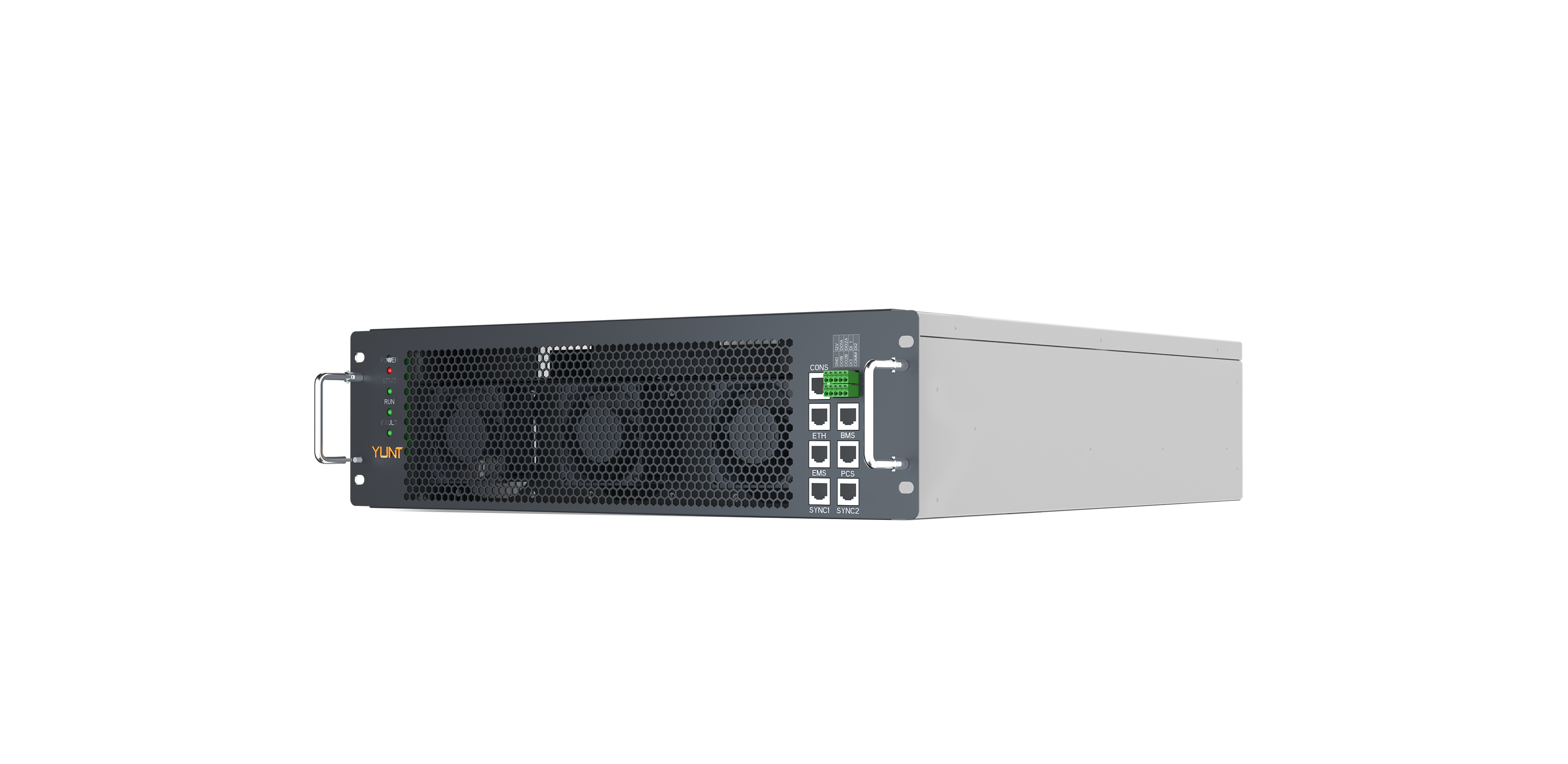

| | (DCDC)Mercury-** |
| | 40K | 50K | 60K |
| DC low voltage side |
| Rated Power | 40kW | 50kW | 60kW |
| Rated current | I20A | 150A | 180A |
| Rated voltage | 350V |
| Maximum voltage | 1000V |
| Voltage range | 150-1000V |
| Start-up voltage | 150V |
| Voltage & current stability | 1% |
| DC high voltage side |
| Rated Power | 40kW | 50kW | 60kW |
| Rated current | 60A | 75A | 90A |
| Rated voltage | 700V |
| Maximum voltage | 1000V |
| Voltage range | 350-1000V |
| Full power voltage range | 680-950V |
| Requirement of High voltage side | Low-Voltage Voltage ≤High-Voltage Voltage ≤1000V |
| starting voltage of high voltage side | 350V |
| Voltage & current stability | 1% |
| Protection and function |
| Reverse protection | Yes |
| Fuse protection | Yes |
| Overcurrent protection | Yes |
| Over/under voltage protection | Yes |
| Overheat protection | Yes |
| Low voltage side short circuit protection | Yes |
| Insulation impedance detection | Yes |
| Overvoltage rating | Type II |
| Surge protection rating | Type II |
| Basic working mode | Constant Power、Constant Current、Constant Voltage |
| Power switching time | <30ms |
| System parameter |
| Topology | Non-Isolated |
| IP level | IP20 |
| Operating temperature range | -40-60℃ (>45℃ Derating operation) |
| Relative humidity | 0-95% No condensation |
| Maximum working altitude | 4000m (>3000m Derating operation) |
| Maximum efficiency | 99% |
| Cooling method | Intelligent air cooling |
| Communication | Ethernet/RS485/CAN |
| Display | LED |
| Maximum number of parallel operations | <30ms |
| Mechanical parameters |
| Weight | 25kg |
| Size(W*H*D) | 444*130*550(Without terminals) |
| Compliant with standards |
| Safety regulations | IEC62477-1.IEC62109-1 |
| EMC | IEC 61000-6-2,IEC 61000-6-3 |
