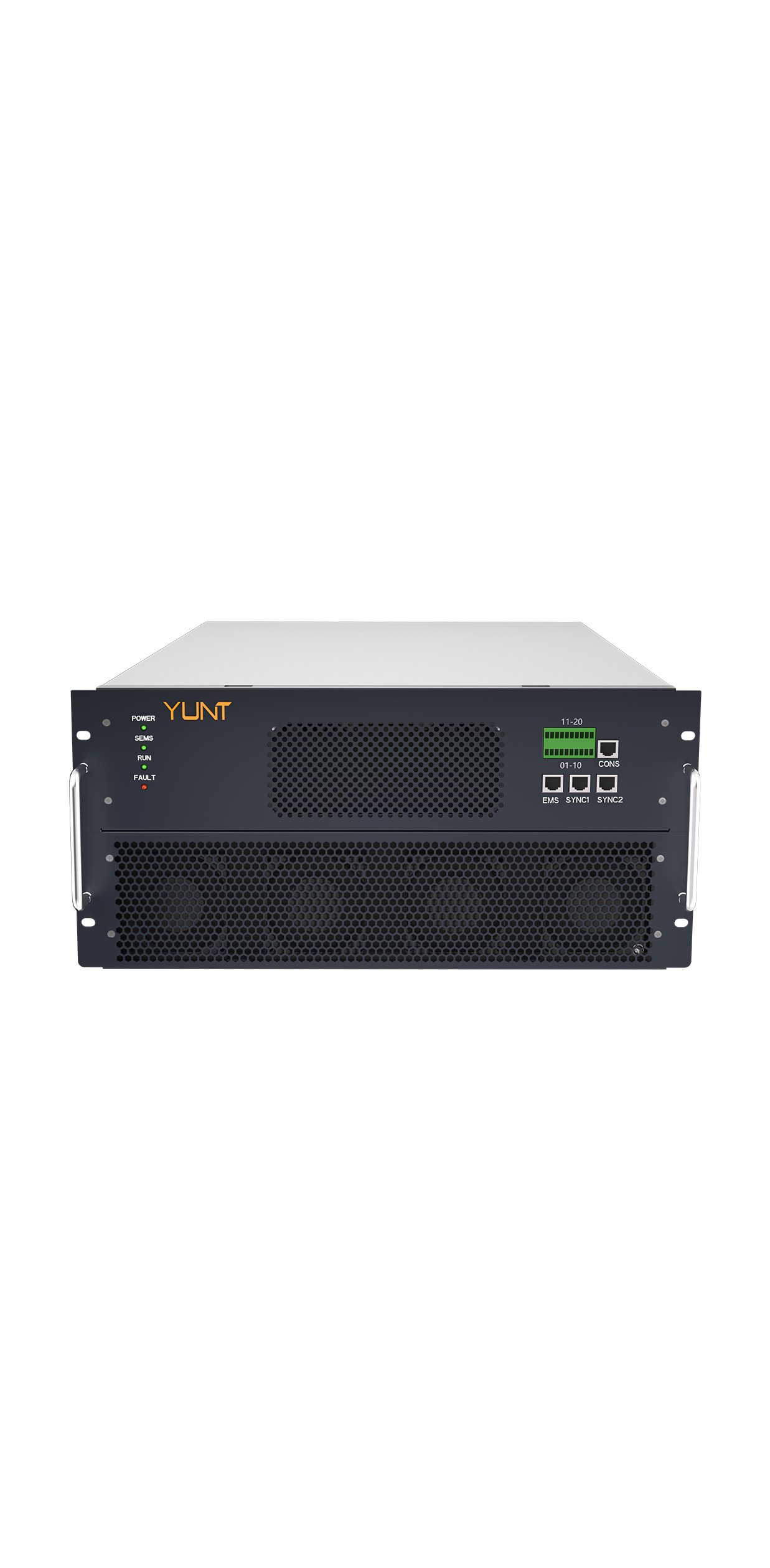

We deliver full-scenario C&I energy storage PCS modules engineered for high performance, cost efficiency, and global compliance.
| Model | Mars-125KT | Mars-110KT | Mars-100KT |
| DCsideparameters | |||
| MaximumDC voltage | 1000V | 1000V | 1000V |
| MinimumDC voltage[1] | 580V | 580V | 580V |
| DCvoltage operatingrange | 580~1000V(Min. 680V for off-grid) | 580~1000V(Min.680V for off-grid) | 580~1000V(Min. 680V for off-grid) |
| Maximumcurrent onDCside | 216A | 190A | 173A |
| ACsideparameters(on-grid) | |||
| Rated charge/discharge power | 125kW | 110kW | 100kW |
| Maximum charge/discharge power | 150kW | 132kW | 120kW |
| Rated charge/discharge current | 182A | 160A | 145A |
| Maximumcharge anddischarge current | 217A | 192A | 174A |
| Ratedgridvoltage | 400V | 400V | 400V |
| Allowablegrid voltagerange | 300~460V | 300~460V | 300~460V |
| Ratedgrid frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Totalharmonic distortionrateof current | <3%(atratedpower) | <3%(atratedpower) | <3%(atratedpower) |
| Powerfactor | >0.99 | >0.99 | >0.99 |
| Powerfactorrange | -1~1 | -1~1 | -1~1 |
| Overloadcapacity | 1.2Pnfor1minute | 1.2Pnfor1minute | 1.2Pnfor1minute |
| ACsideparameters(off-grid) | |||
| Ratedoutput voltage | 400V | 400V | 400V |
| Voltagedeviation | ±2% | ±2% | ±2% |
| Totalharmonic distortionrateof voltage | <3%(linearload) | <3%(linearload) | <3%(linearload) |
| Efficiency | |||
| Maximum efficiency | 98.90% | 98.90% | 98.90% |
| Protection | |||
| DCreverse connection protection | Yes | Yes | Yes |
| ACshortcircuit protection | Yes | Yes | Yes |
| ACoutput overcurrent protection | Yes | Yes | Yes |
| Surgeprotection | LevelII | LevelII | LevelII |
| Insulation impedance monitoring | Yes | Yes | Yes |
| Temperature protection | Yes | Yes | Yes |
| Basicparameters | |||
| Dimensions (H*W*D) | 220mm(height)x444mm (width)x720mm(depth), excludingterminals | 220mm(height)x444mm (width)x720mm(depth), excludingterminals | 220mm(height)x444mm (width)x720mm(depth), excludingterminals |
| Weight | |||
| Topology | Transformerless | Transformerless | Transformerless |
| Ambient | -40~+60℃ | -40~+60℃ | -40~+60℃ |
| Model | Mars-125KT | Mars-110KT | Mars-100KT |
| temperature | |||
| IPrating | IP20(moduleandbatterypack integratedsolution,andtheIP ratingofthesystemshould reachIP54orabove) | IP20(moduleandbatterypack integratedsolution,andtheIP ratingofthesystemshould reachIP54orabove) | IP20(moduleandbatterypack integratedsolution,andtheIP ratingofthesystemshould reachIP54orabove) |
| Working environment Mechanical conditions | Sinusoidalsteadystate vibration: 2Hz≤f<9Hz,displacement 1.5mm; 9Hz≤f<200Hz,acceleration 5m/s2。 GB/T4798.3-20073M2 | Sinusoidalsteadystate vibration: 2Hz≤f<9Hz,displacement 1.5mm; 9Hz≤f<200Hz,acceleration 5m/s2。 GB/T4798.3-20073M2 | Sinusoidalsteadystate vibration: 2Hz≤f<9Hz,displacement 1.5mm; 9Hz≤f<200Hz,acceleration 5m/s2。 GB/T4798.3-20073M2 |
| Coolingmode | Intelligentaircooling | Intelligentaircooling | Intelligentaircooling |
| Maximumworking altitude | 4,000m(>3,000m,derated) | 4,000m(>3,000m,derated) | 4,000m(>3,000m,derated) |
| Stand-bypower consumption | |||
| Characteristic | |||
| DCInterface | OTterminal | OTterminal | OTterminal |
| ACPort | OTterminal | OTterminal | OTterminal |
| Display | LED | LED | LED |
| Communication mode | Ethernet、RS485、CAN | Ethernet、RS485、CAN | Ethernet、RS485、CAN |
Liquid Cooling )PCS
| Model | Mars-125KT-LP | Mars-110KT-LP | Mars-100KT-LP |
| DCsideparameters | |||
| MaximumDC voltage | 1000V | 1000V | 1000V |
| MinimumDC voltage[1] | 580V | 580V | 580V |
| DCvoltage operatingrange | 580~1000V(Min. 680V for off-grid) | 580~1000V(Min. 680V for off-grid) | 580~1000V(Min. 680V for off-grid) |
| Maximumcurrent onDCside | 216A | 190A | 173A |
| ACsideparameters(on-grid) | |||
| Rated charge/discharge power | 125kW | 110kW | 100kW |
| Maximum charge/discharge power | 150kW | 132kW | 120kW |
| Rated charge/discharge current | 182A | 160A | 145A |
| Maximumcharge anddischarge current | 217A | 192A | 174A |
| Ratedgridvoltage | 400V | 400V | 400V |
| Allowablegrid voltagerange | 300~460V | 300~460V | 300~460V |
| Ratedgrid frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Totalharmonic distortionrateof current | <3%(atratedpower) | <3%(atratedpower) | <3%(atratedpower) |
| Powerfactor | >0.99 | >0.99 | >0.99 |
| Powerfactorrange | -1~1 | -1~1 | -1~1 |
| Overloadcapacity | 1.2Pnfor1minute | 1.2Pnfor1minute | 1.2Pnfor1minute |
| ACsideparameters(off-grid) | |||
| Ratedoutput voltage | 400V | 400V | 400V |
| Voltagedeviation | ±2% | ±2% | ±2% |
| Totalharmonic distortionrateof voltage | <3%(linearload) | <3%(linearload) | <3%(linearload) |
| Efficiency | |||
| Maximum efficiency | 98.90% | 98.90% | 98.90% |
| Protection | |||
| DCreverse connection protection | Yes | Yes | Yes |
| ACshortcircuit protection | Yes | Yes | Yes |
| ACoutput overcurrent protection | Yes | Yes | Yes |
| Surgeprotection | LevelII | LevelII | LevelII |
| Insulation impedance monitoring | Yes | Yes | Yes |
| Temperature protection | Yes | Yes | Yes |
| Basicparameters | |||
| Dimensions (H*W*D) | 220mm(height)x444mm (width)x720mm(depth), excludingterminals | 220mm(height)x444mm (width)x720mm(depth), excludingterminals | 220mm(height)x444mm (width)x720mm(depth), excludingterminals |
| Weight | |||
| Topology | Transformerless | Transformerless | Transformerless |
| Ambient | -40~+60℃ | -40~+60℃ | -40~+60℃ |
| Model | Mars-125KT | Mars-110KT | Mars-100KT |
| temperature | |||
| IPrating | IP20(moduleandbatterypack integratedsolution,andtheIP ratingofthesystemshould reachIP54orabove) | IP20(moduleandbatterypack integratedsolution,andtheIP ratingofthesystemshould reachIP54orabove) | IP20(moduleandbatterypack integratedsolution,andtheIP ratingofthesystemshould reachIP54orabove) |
| Working environment Mechanical conditions | Sinusoidalsteadystate vibration: 2Hz≤f<9Hz,displacement 1.5mm; 9Hz≤f<200Hz,acceleration 5m/s2。 GB/T4798.3-20073M2 | Sinusoidalsteadystate vibration: 2Hz≤f<9Hz,displacement 1.5mm; 9Hz≤f<200Hz,acceleration 5m/s2。 GB/T4798.3-20073M2 | Sinusoidalsteadystate vibration: 2Hz≤f<9Hz,displacement 1.5mm; 9Hz≤f<200Hz,acceleration 5m/s2。 GB/T4798.3-20073M2 |
| Coolingmode | Liquid Cooling | Liquid Cooling | Liquid Cooling |
| Maximumworking altitude | 4,000m(>3,000m,derated) | 4,000m(>3,000m,derated) | 4,000m(>3,000m,derated) |
| Stand-bypower consumption | |||
| Characteristic | |||
| DCInterface | OTterminal | OTterminal | OTterminal |
| ACPort | OTterminal | OTterminal | OTterminal |
| Display | LED | LED | LED |
| Communication mode | Ethernet、RS485、CAN | Ethernet、RS485、CAN | Ethernet、RS485、CAN |

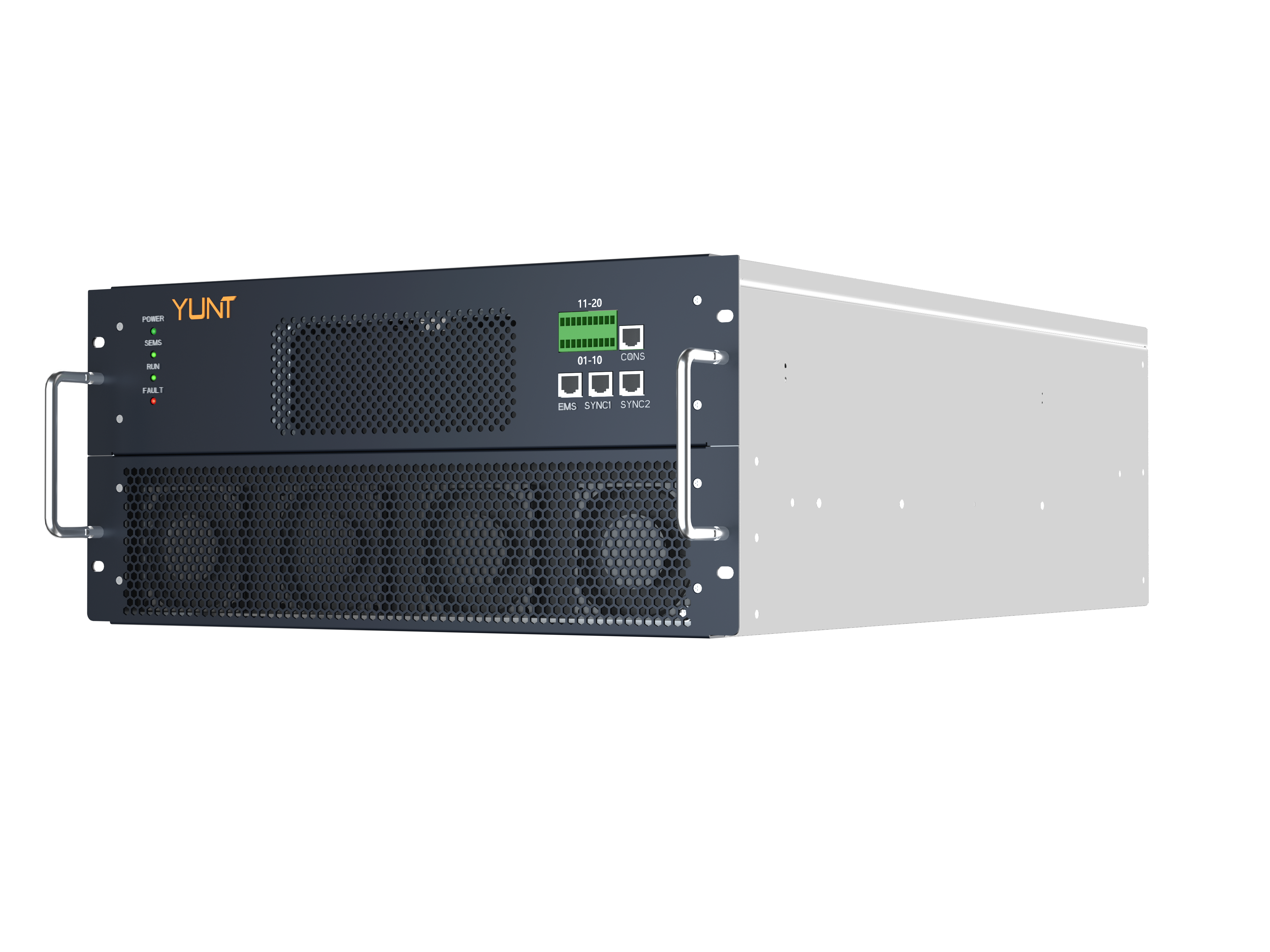

A PCS module (Power Conversion System module) is the core bidirectional power conversion unit within an energy storage system. It is responsible for converting electricity between DC (battery side) and AC (grid side), enabling controlled charging, discharging, and grid interaction.
In commercial and industrial projects, PCS modules are widely used by system integrators to build:
Our Mars Series PCS modules are specifically engineered to handle complex grid conditions and demanding operating scenarios. The solution supports high- and low-voltage ride-through (HVRT/LVRT), black-start capability, and off-grid parallel operation, ensuring stable performance even in weak-grid environments.
Designed with advanced grid-support functions, the Mars Series bidirectional power module improves grid compatibility and enables stable operation in high-renewable penetration scenarios.
As a professional bidirectional power module manufacturer, we develop our PCS modules with a strong focus on efficiency, intelligent control, and modular scalability—ensuring seamless integration into diverse C&I energy storage architectures.
As an experienced bidirectional power module manufacturer, we specialize in the R&D and innovation of energy storage power conversion technologies. Since our establishment, we have focused on mastering core PCS technologies and have steadily grown into one of China’s leading suppliers of C&I PCS modules and microgrid solutions.
Our continuous investment in power electronics, control algorithms, and grid-support technologies enables us to deliver high-performance PCS modules designed for complex grid environments and renewable integration scenarios.
With an annual production capacity of 3.5 GW, we ensure fast and stable project execution. Our products and solutions have been deployed in more than 50 countries and regions worldwide, supporting diverse energy storage and microgrid applications.
We provide tailored solutions within 72 hours, supporting system integrators and EPC partners with rapid technical alignment and project-specific optimization.
